What is a DPF Clean ?
Many drivers are under the impression that when their DPF becomes blocked, they need to replace the whole DPF for a costly fee. However, the truth is DPF’s can be cleaned for a fraction of the replacement cost and this process offers a cost effective solution to any DPF blockage. With our DCS DPF Cleaning Systems you can remove up to 100% of carbon, soot and ash from all types of DPF’s. This helps your customers to save tons of money, whilst helping your Workshop to generate extra revenue. Invest in your own DPF Cleaning System and clean DPFs in your workshop within a matter of hours, whilst having the ability to offer a same day DPF cleaning service to other local Workshops in your area.

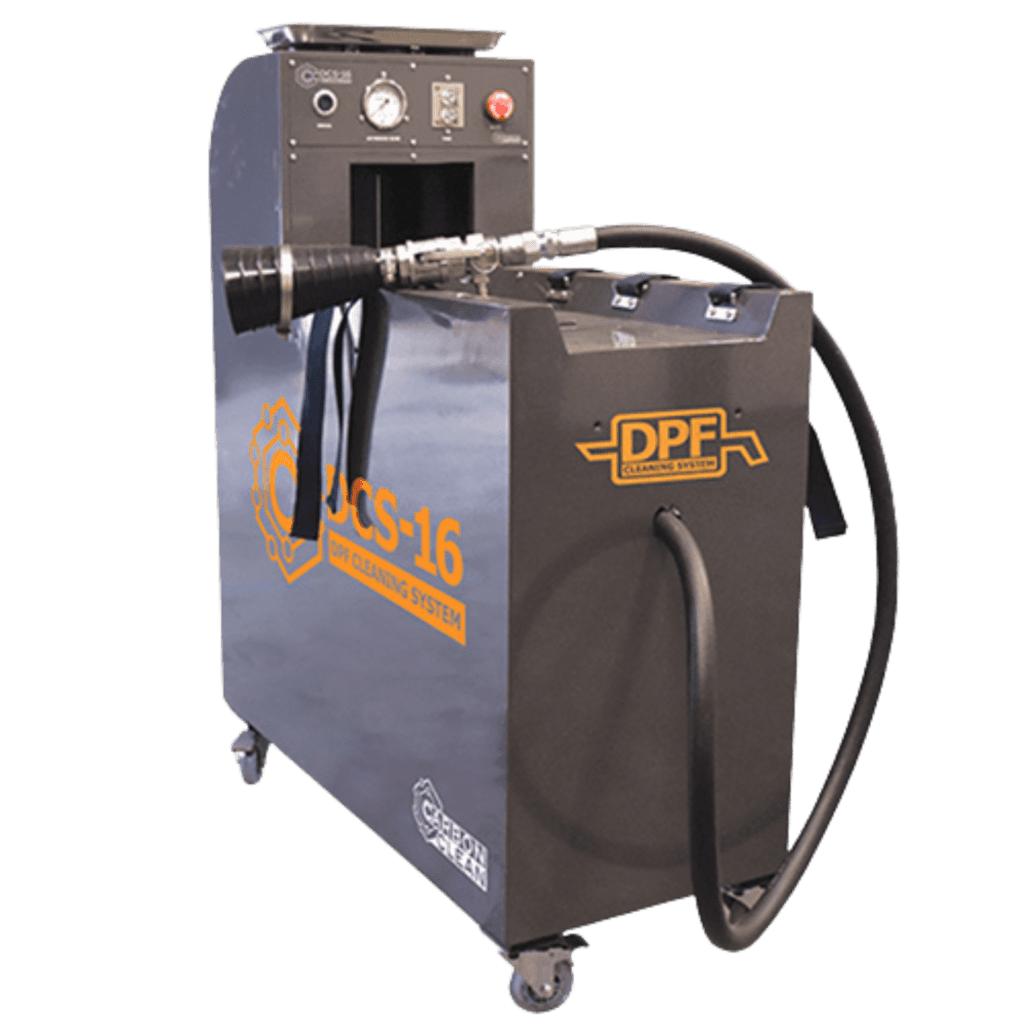

Designed to accommodate most domestic car DPFs, to perform a complete filter regeneration.
- Can remove up to 100% of soot / ash in DPF
- Automatic set and forget function
- Equipped with all accessories to suit any car DPF
- Simple control panel
- Good value for money
- Compact design and mobile
- Accessories to suit car and van DPF’s
| Description | DPF Cleaning System |
| Model No. | DCS-16 |
| Driving System | AIR: 2:6 Bar |
| Cleaning Agent | Cleaning Agent/ Water / Air |
| Operation | Timer Relay Solenoid Valve |
| Display Mode | Analogue |
| Air Receiver Tank | 15L |
| Dimensions | 400(W)x900(L)x1120(H)(mm) |
| Net Weight | 60kg |
| Power Supply | 220V / 13A / 1PH |
| Applications | Car |
- Work bed
- Waste in-let
- DPF adapter
- Safety straps
- Waste outlet
- Air pressure hose
- Manual start
- Pressure gauge
- Dual auto timer
- Auto start / stop

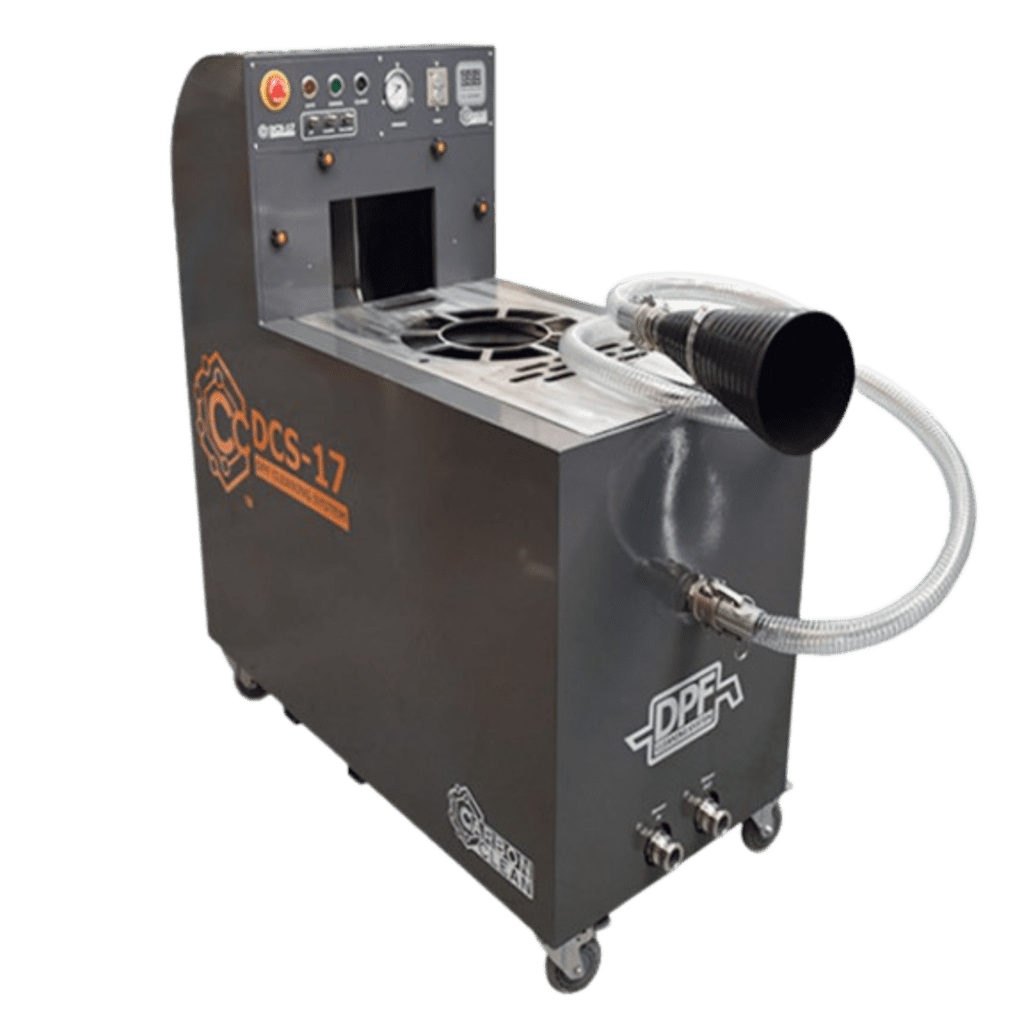

This machine is suitable for light commercial vehicles equipped with a range of accessories to tackle most DPFs in the car park.
- Easy work-bed design
- Can handle Euro 5 and 6 engines
- In situ clean and dry function
- Multi-direction DPF positions, to clean deeper
- Pressure Display
- Can remove upto 100% of soot/ ash in DPF
- Automatic set and forget function
| Description | DPF Cleaning System |
| Model No. | DCS-17 |
| Driving System | AIR: 2:6 Bar |
| Cleaning Agent | Cleaning Agent/ Water / Air |
| Operation | Timer Relay Solenoid Valve |
| Display Mode | Analogue / Digital |
| Air Receiver Tank | 30L |
| Dimensions | 1250(W)x600(L)x1120(H)(MM) |
| Net Weight | 160kg |
| Power Supply | 220V / 16A / 1PH |
| Applications | Car, Van, LCV |
- Emergency stop button
- Auto / Manual / Blower buttons
- Pressure guage
- Timer
- Differential pressure numeric display
- Waste outlet chamber
- Air cylinder operation level air regulator
- Blower in / out
- Waste outlet

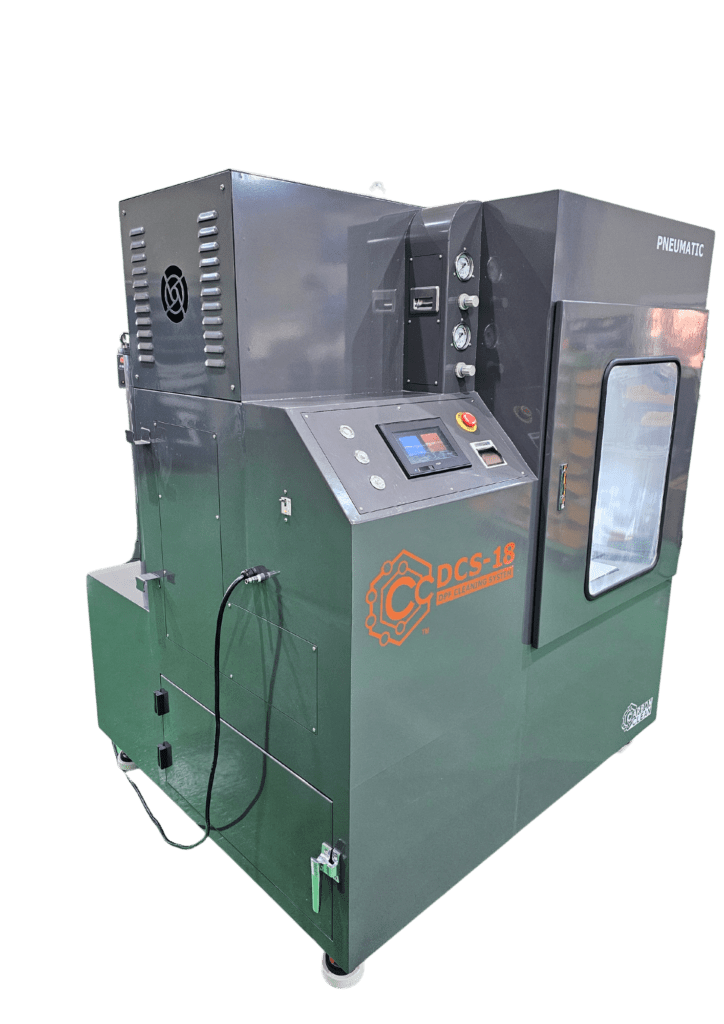

This DPF cleaning machine specifically focuses on pneumatic cleaning for Euro 6 DPFs. This new feature only uses air from a high pressure nozzle that is applied to each element of the DPF allowing a detailed clean. This means there is no additional liquid costs and the enclosed cabinet design creates a convenient servicing process.
- Specialised machine for Euro 6 DPFs
- Precision Cleaning with adjustable air-needle positioning
- Cabinet design for easy operation and servicing
- Only uses constant air pressure
- Can remove upto 100% of soot/ ash in DPF
- Automatic set and forget function
| Description | Commercial DPF Cleaning System |
| Model No. | DCS-18 |
| Driving System | AIR: 2-10 BAR |
| Cleaning Agent | Air Pressure |
| Operation | Timer Relay Solenoid Valve |
| Display Mode | Touch Screen |
| Air Receiver Tank | Direct to Air Compressor |
| Dimensions | 800(W) x 1440(L) x 1795(H)(MM) |
| Net Weight | 355 kg |
| Power Supply | 220V / 60HZ / 32A |
| Vehicle Type | Cartridge style Truck, Plant, Boat, Train & Agricultural. |
